Xtrutech’s XTCC cooling conveyors provide efficient cooling for extrudate coming out of the extruder by using a closed-loop water cooling system. Cooling conveyors can be purchased to fit an XTS extruder, or purchased stand alone to fit other machines.

Xtrutech is proud to have spent the last two-plus decades designing and manufacturing products like twin screw extruders, feeding systems, cooling systems, bespoke ancillaries, spare parts, along with various other OEM spare parts. We also offer various engineering services, and serve industries ranging from powder coatings and thermoplastics to biopolymers, medical plastics, chemicals, and even food and pharmaceuticals. Contact us today to learn more!

XTCC 1X5

Provides an output of up to 800 kg/h

XTCC 1X5

XTCC 1.2X6

Reaches an output of up to 1,600 kg/h

XTCC 1.2X6

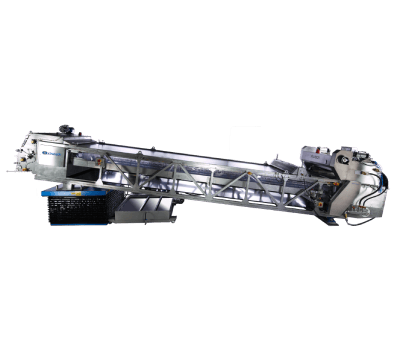

XTCC 1.5X8

Our largest standard conveyor with a maximum output of 2,400 kg/h

XTCC 1.5X8
  • XTCC Cooling Conveyors Explained

    The XTCC cooling conveyor systems feature a closed-loop water cooling setup which offers improved energy efficiency, as it recycles and reduces the amount of water used for cooling. Disruptive water flow is used to rapidly decrease temperature, beginning at the chilled nip roll and continuing to the secondary zone of cooling. These are situated ideally within the cooling conveyor system to increase the rate of cooling across the width of the product.

    As per the Xtrutech standard, the conveyors are accompanied by a mini breaker/flaker unit, which provides concise particle distribution that improves grinding efficiency. The air guides can be adjusted and fixed to prevent deviation of the sheets. Each of the XTCC cooling conveyor units are made for seamless integration with the XTS Extruder range.

  • XTCC Features

    The XTCC cooling conveyor system from Xtrutech comes with several notable features that make it ideal for a number of different applications:

    • Stainless steel frames
    • Stainless steel belt
    • Large diameter chill roll designed for turbulent water flow to maximise cooling
    • Nip roll designed for turbulent water flow
    • Secondary cooling roll on the belt to improve temperature control across the width of the extrudate
    • Mini breaker / flaker unit as standard
    • Moving device included for cooling conveyor
    • All safety interlocks included for a seamless integration with the XTS extruder
    • Assisted belt and kibbler cleaning system
    • Continuous chill roll cleaning
    • Scissor lift is optional for height control to support maintenance and cleaning

Specifications

Take a look at the chart below to find the right size cooling conveyor to fit your extrusion line. Contact us to discuss other specifications and requirements.

Cooling Conveyor Belt
Matching ExtruderXTS44XTS56XTS65
Size1X51.2X61.5X8
Output (Kg/h max)80016002400

Contact Us

At Xtrutech, we take pride in our commitment to providing top-quality products and services to our customers. In addition to cooling conveyor systems, we offer a wide range of twin screw extruders, screw elements, and engineering services tailored to meet your specific needs.

Contact us today for more information on how we can help improve your extrusion process! Our team is ready to answer any questions you may have and provide you with a custom quote for your project. Let’s work together towards achieving the best results for your needs.
