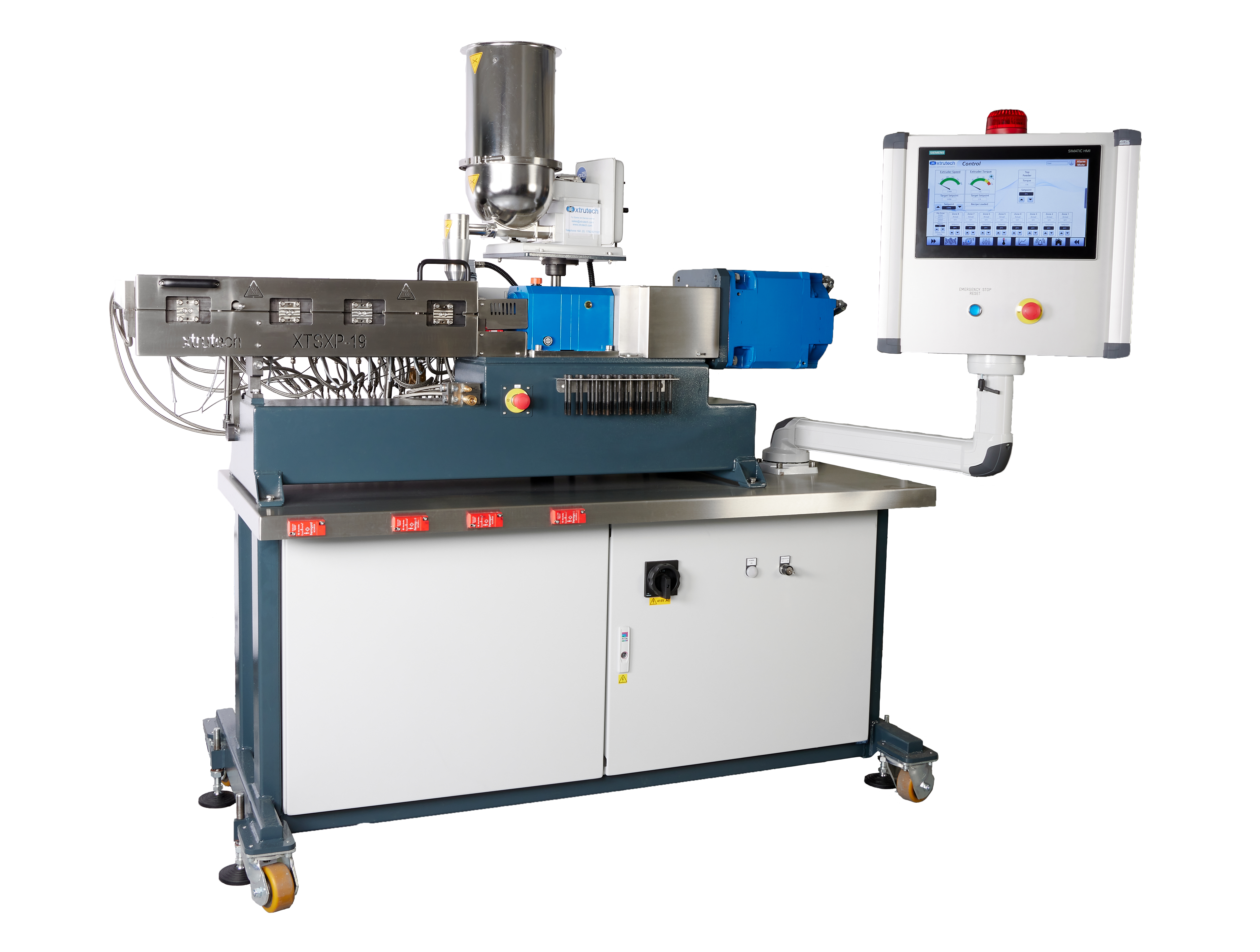

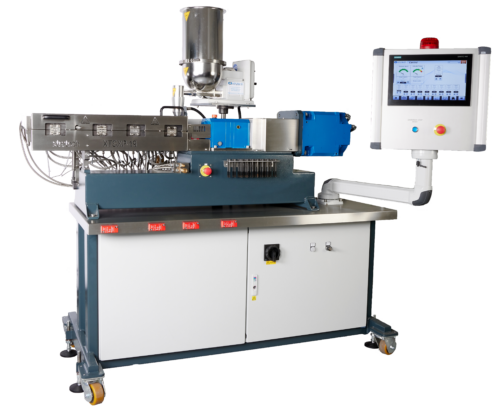

The XTSXP19 is a brand new 19mm high powered twin screw extruder and part of the XTSXP range. The lab twin screw extruder has been designed and manufactured to support the most demanding processes within biopolymers, plastics, and food extrusion.

Barrels come in standard lengths of 24D and in 6D increments up to 54L/D for more complex applications

All Xtrutech twin screw extruders have been designed to pair seamlessly with an XTS cooling system. The XTDC1 Drum Cooler offers compact and efficient cooling.

An XTSXP-19 is housed within our state of the art Innovation Centre and is available for trials with a range of Xtrutech ancillaries to create a full laboratory extrusion line for product testing and process optimisation. Speak to our expert team about your extrusion requirements today.

  • Features
    • Clamshell barrel which allows essential access to the screws and shafts.
    • Insert liners which are cost effective to replace and can be made from wear resistant materials.
    • Segmented screw elements which can now include Xtra volume elements for increased production output.
    • Individually controlled heating zones (3D or 6D) for more control over your process.
    • PLC controls with operator-friendly HMI screens.
  • Data
    • Motor Power: 7.8 kW
    • Screw Speed: 1,200 rpm
    • Maximum Torque: 31m per shaft
    • Standard Operating Temp: 250°C (450°C available on request)
  • Dimensions
    • Barrel length: 24 – 54 L/D
    • Length: 2097mm (Dependent on barrel length)
    • Height: 1994mm (Dependent on feeder selection)
    • Width: 1260mm
  • Build a Seamlessly integrated Lab Line
